Automatic Fire Alarm System: Your 1st Defense
Why Every Property Needs an Automatic Fire Alarm System
An automatic fire alarm system is a network of devices that automatically detects fire, smoke, or heat, alerting occupants and emergency services. It’s a first line of defense, providing early warnings that can prevent catastrophic loss.
Key Components of an Automatic Fire Alarm System:
- Fire Alarm Control Panel (FACP) – The central “brain” that monitors all devices
- Automatic Initiating Devices – Smoke, heat, and flame detectors that sense fire conditions
- Notification Devices – Horns, strobes, and speakers that alert occupants
- Power Supplies – Primary and backup power to ensure 24/7 operation
- Communication Equipment – Connects to monitoring stations for emergency dispatch
Statistics show the need for early detection. In England, Fire and Rescue Services attended 622,173 incidents in the year ending March 2023, many of which could have been contained with faster alerts. Advanced systems can detect invisible smoke particles, and some can even spot wildfires from 10 miles away.
Unlike manual pull stations, automatic systems work around the clock. They detect fires in their earliest stages, giving occupants precious time to evacuate safely and allowing firefighters to respond before the situation becomes uncontrollable.
I’m Brad Besner, founder of TechPro Security Products. Since 2007, my team and I have been integrating automatic fire alarm systems into comprehensive security solutions across South Florida, seeing how they protect properties.
How an Automatic Fire Alarm System Works: The Key Components
An automatic fire alarm system is like a 24/7 safety team for your building. From our experience installing systems in South Florida, we know these components create a vital safety net. The system’s core components work in harmony: the Fire Alarm Control Panel (FACP) acts as the command center, monitoring initiating devices (smoke/heat detectors). When a threat is detected, notification devices (horns, strobes) activate. Power supplies provide constant power, and system monitoring connects to emergency responders.
The process is fully automatic: an initiating device sends a signal to the FACP, which instantly triggers the appropriate response without human intervention.
The Brains of the Operation: The Fire Alarm Control Panel (FACP)
The Fire Alarm Control Panel (FACP) is the brain of the automatic fire alarm system, constantly monitoring all connected devices. It intelligently interprets signals, identifying the exact location and type of emergency. The FACP distinguishes between two main signal types:
- Alarm signals: Indicate an immediate fire condition, triggering all notification devices without delay.
- Supervisory signals: Alert to potential issues that need attention, such as a problem with a sprinkler valve, ensuring the system remains ready.
Crucially, the FACP communicates with central monitoring stations. This ensures that even in an empty building, emergency responders are dispatched within seconds, providing South Florida property owners with 24/7 peace of mind.
Automatic vs. Manual Initiating Devices
Initiating devices are the sensors that detect danger. Understanding the two main types, automatic and manual, is key to appreciating how comprehensive fire protection works.
| Feature | Automatic Initiating Devices | Manual Initiating Devices |
|---|---|---|
| Activation Method | Automatically activate upon detecting heat, smoke, or flame | Require human intervention, typically by pulling a lever or pressing a button |
| Response Time | Extremely fast, often detecting early signs of fire before it’s visible | Dependent on human observation and action; can be slower |
| Ideal Use Cases | 24/7 protection, detection in unoccupied areas, early warning for rapid suppression | Primary alert in occupied spaces, backup to automatic systems, direct human-initiated alarm |
Automatic initiating devices provide 24/7 monitoring. These include smoke, heat, and flame detectors, as well as sprinkler flow switches. Their reliability ensures that fires are detected in their earliest stages, even in unoccupied areas.
Manual initiating devices, like pull stations, empower people to sound the alarm if they spot a fire. Dual-action stations prevent accidental alarms.
Together, automatic and manual devices create a robust system, combining continuous monitoring with immediate human response capability.
For more information on how we integrate these essential components into comprehensive security solutions, consider exploring our insights on Access Control Security Systems.
Alerting Occupants: Notification Appliances
When an automatic fire alarm system detects a threat, notification appliances alert everyone to evacuate.
- Audible alarms like horns and bells produce unmistakable, urgent sounds to grab attention. Speakers can provide specific voice evacuation instructions, which is vital in large or complex buildings.
- Visual alarms like strobes and flashing lights ensure the alert is received by everyone, including those with hearing impairments or in noisy environments.
The goal is to ensure every person is alerted to the emergency. All devices activate simultaneously for a coordinated response, maximizing evacuation time.

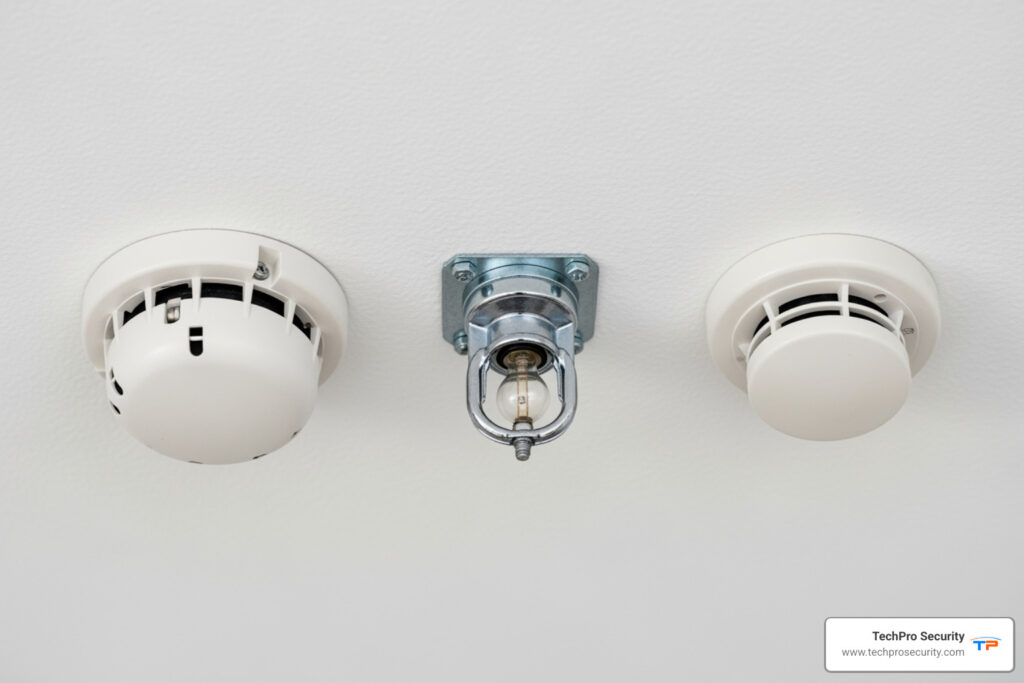

The Sentinels: Types of Automatic Fire Detection Devices
The strength of an automatic fire alarm system lies in its detection devices—the sensors that spot trouble early. Choosing the right detector is crucial, as a kitchen has different needs than an office or data center. We help our South Florida clients select the right technology for their environment to ensure reliability and minimize false alarms. Detectors are generally either spot-type for specific areas or linear-type for large spaces.
Smoke Detectors
Smoke detectors are the workhorses of fire detection, sensing fire particles in the earliest stages.
- Ionization detectors use a small electrical current that is disrupted by invisible smoke particles from fast-burning fires.
- Photoelectric detectors use a beam of light that is scattered by visible smoke from slow, smoldering fires.
Their versatility makes them ideal for hallways, common areas, bedrooms, data centers, and offices. However, they should not be placed in kitchens, where cooking fumes can cause false alarms.
Heat Detectors
In environments like commercial kitchens, dusty warehouses, or parking garages, heat detectors are a better choice than smoke detectors to avoid false alarms. They respond to temperature changes, not particles.
- Fixed-temperature detectors trigger an alarm at a preset temperature (e.g., 135°F). They are simple and reliable in dusty or steamy areas.
- Rate-of-rise detectors sense a rapid increase in temperature (e.g., 15°F in a minute), providing earlier warning for fast-developing fires.
Heat detectors are ideal for kitchens, garages, boiler rooms, and areas with high dust or humidity.
Flame, Beam, and Other Specialized Detectors
For specific challenges, specialized detectors offer advanced protection:
- Flame detectors use UV or IR sensors to spot flames instantly, ideal for areas with flammable materials.
- Video smoke detection (VSD) uses AI-powered cameras to visually identify smoke or flames, even from miles away for wildfire prevention.
- Aspirating smoke detectors (ASD) actively draw in air samples through pipes to a central unit for highly sensitive, early detection, perfect for data centers and clean rooms.
- Beam detectors project an infrared beam across large, open spaces like warehouses and atriums, triggering an alarm when smoke obstructs the beam.
- Duct detectors are installed in HVAC systems to detect smoke and shut down ventilation to prevent it from spreading.
Matching the right specialized detector to your environment is key for creating layered, effective protection.
The Critical Advantages and Legal Requirements
An automatic fire alarm system is more than a compliance checkbox; it’s a 24/7 guardian for your property. The benefits far outweigh the cost. Statistics show the critical need for these systems: in the year ending March 2023, Fire and Rescue Services in England responded to 622,173 incidents. Many of these could have been contained with early detection.
Why Early Detection is Your Best Defense
Early detection is everything in fire protection. An automatic fire alarm system provides a rapid response that can make all the difference. Key benefits include:
- Rapid Response: Alerts firefighters sooner, improving their chances of controlling a fire. Systems can raise an alarm within minutes of detection.
- Damage Minimization: Catching fires early contains them before they cause significant structural damage or property loss.
- Fire Spread Containment: Triggers alarms and integrates with other systems, like shutting down HVAC, to keep fire from spreading.
- Evacuation Time: Provides precious extra minutes for occupants to evacuate safely, which is critical in large buildings or for vulnerable individuals.
- Business Continuity: Minimizing fire damage allows businesses to resume operations faster, reducing financial losses.
Automatic detection helps firefighters operate within the crucial “golden hour” when intervention is most effective.
When is an automatic fire alarm system a legal requirement?
Legal requirements for automatic fire alarm systems vary by location and building type, but many properties are mandated to have them. In the U.S., local codes are often based on NFPA 72 (National Fire Alarm and Signaling Code). Key factors determining requirements include:
- Occupancy Type: Residential, commercial, and specialized facilities (e.g., healthcare, schools) have different rules.
- Building Size and Height: Larger and taller buildings face stricter requirements due to increased risk.
- Fire Load & Special Hazards: The amount of flammable material and presence of hazards like chemical storage influence needs.
The local Authority Having Jurisdiction (AHJ), such as the fire marshal, has the final say in enforcing these codes. Even when not legally required, many property owners install these systems. Insurance companies often mandate them or offer premium reductions, and protecting assets and personnel is simply good business practice. For most businesses, an automatic system is the most “appropriate” choice for comprehensive protection.
If you want to dive deeper into NFPA standards and fire protection engineering guidelines, Meyer Fire University offers detailed courses that cover these topics extensively.
Beyond the Alarm: Advanced Technology and System Integration
Modern automatic fire alarm systems are far more advanced than older models. They are intelligent networks that use AI, remote monitoring, and system integration to make buildings safer. At TechPro Security, we see these advances in South Florida. AI-powered analytics reduce false alarms by distinguishing real threats from harmless events like steam. Remote monitoring allows for constant oversight, while new standards (CP-01, AVS-01) create smarter systems that use audio and video to verify threats. This reduction in false alarms is critical, as it ensures people take every alert seriously.
Smart building technology is pushing these capabilities even further, with systems that can predict issues and coordinate with emergency services automatically. For more insights into how advanced security technology is changing the game, check out our article on Virtual Gate Guards.
Integrating with Other Building Systems
A key advantage of modern automatic fire alarm systems is their ability to integrate with other building systems for a coordinated, automated response. When a fire is detected, the system can instantly:
- Control HVAC systems to shut down fans and prevent smoke from spreading.
- Manage smoke control systems, activating exhaust fans and pressurizing stairwells.
- Recall elevators to a safe floor and lock them out of service.
- Release emergency exit doors while securing other areas to contain the fire.
- Activate emergency lighting and brighten exit signs.
- Trigger automatic sprinkler systems in specific zones.
- Broadcast voice evacuation instructions through building speakers.
This integration is vital for access control, balancing security with safe evacuation, a specialty of our Access Control System Installation in Boca Raton services. This transforms your building into an intelligent safety ecosystem that protects lives and property with split-second, automated decisions.
Frequently Asked Questions about Automatic Fire Alarms
Over the years, we’ve helped countless South Florida property owners understand their fire safety needs. These are the questions that come up most often when we’re discussing automatic fire alarm systems with our clients.
What is the main difference between conventional and addressable fire alarm systems?
The main difference is location precision.
- Conventional systems group detectors into zones. The panel indicates which zone is in alarm (e.g., “Zone 3”), but not the specific device. This requires searching the area and is best for smaller buildings.
- Addressable systems give each detector a unique address. The panel pinpoints the exact device and its location (e.g., “Smoke Detector, Conference Room B”). This saves first responders critical time, making these systems ideal for larger, more complex buildings.
How often do automatic fire alarm systems need to be tested and maintained?
Proper maintenance is crucial for reliability. A poorly maintained system provides a false sense of security.
Most codes and NFPA standards require a comprehensive professional inspection annually. This involves testing every component, from wiring and batteries to notification device audibility and brightness.
In addition, building staff should perform regular checks:
- Weekly: Visually inspect the control panel for trouble signals.
- Monthly: Ensure pull stations and speakers are unobstructed.
- Quarterly: Test a sample of detectors and notification devices.
Keeping detailed records of all tests is essential for compliance and insurance purposes.
Can a sprinkler system be considered a form of automatic fire detection?
Yes, a sprinkler system is a form of automatic fire detection when integrated with the automatic fire alarm system. When a sprinkler head activates from heat, a water-flow switch detects the water movement and sends an alarm signal to the control panel. This triggers building alarms and notifies emergency services.
However, it’s important to understand the timing. Sprinklers activate at a much later stage of a fire, once significant heat has built up. Smoke detectors provide a much earlier warning, often detecting invisible combustion particles before flames are present.
The best approach combines both: smoke detectors for early warning and sprinklers for fire suppression.
Your First Line of Defense Against Fire
An automatic fire alarm system is more than equipment; it’s a silent, 24/7 guardian for your property. It provides immeasurable peace of mind, knowing that a fire will be detected and responders alerted immediately, even in an empty building. This proactive protection is the difference between a minor incident and a devastating loss.
Early detection saves lives, provides crucial evacuation time, and minimizes property damage, ensuring business continuity. Modern systems are intelligent, using AI and seamless integration with building controls to provide a coordinated response.
Here in South Florida, from Aventura to West Palm Beach, TechPro Security understands that every property is unique. We specialize in custom solutions backed by extensive warranties and support. Professional installation is critical for a system designed to meet codes and your specific needs. Our team has protected South Florida properties since 2007, providing fire protection you can rely on.
Don’t wait for an emergency. Proactive safety is essential. We’re here to help you safeguard what matters most.
